JUKI PS-800 template sewing machine
1. Machine Name: Template sewing machine
2. Brand: Juki
3. Name of the products: template sewing machine
4. Model: PS-800SB8045, PS800SB13085
5. Sewing area: 800x450mm or 1300*850mm
6. Sewing speed: Max: 3000spm
7. Feeding: Double-stepping motor belt drive or screw drive (ball drive)

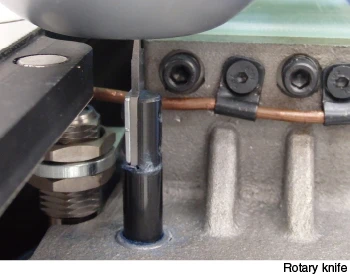

8. Cloth cutting: Rotary knife, Direct driven knife, or laser cutting
9. File format: DXF / AI / PLT / DST
10. Application: Suitable for lightweight materials to heavy-duty materials
JUKI PS-800SB8045 template sewing machine:
JUKI PS-800SB8045 Template Sewing Machine
The dry head machine achieves max. speed 3,000sti/min with supporting various sewing and materials.
JUKI PS-800SB8045 Template Sewing Machine parameters:
|
PS-800SB13085 |
PS-800SB8045 |
PS-800HB8045 |
PS-800SB6045 |
PS-800SS12080 |
PS-800HS12080 |
|
|
1300×850mm |
800×450mm |
600×450mm |
1200×800mm | |||
|
3000sti/min |
||||||
|
0.5-12.7 mm |
||||||
|
Full-rotary double-capacity hook |
||||||
|
Lifting amount: 20 mm / Stroke: Standard 4 mm |
||||||
|
0-9 mm |
||||||
|
DB×1#8(7#-14#) |
DB×1#8(7#-14#) |
DP×17#21(18#-23#) |
DB×1#8(7#-14#) |
DB×1#8(7#-14#) |
DP×17#21(18#-23#) |
|
|
Max. 999 patterns (80000 sti/pattern) |
||||||
|
999 patterns |
||||||
|
500Kg |
450Kg |
320Kg |
750Kg | |||
|
2190×2100×1250mm |
1200×1325×1250mm |
1560×1200×1250mm |
2180×2185×1250mm | |||
JUKI PS-800SB8045 Template Sewing Machine features:
1. Feeding type and sewing area
Space-saving PS-800-8045
The PS-800-8045 can be installed in a space-saving manner.Not only the parts department but also sewing lines can be used.(The table size of PS-800-8045 width is 1200mm wideth, the same as 1-needle lockstitch machine.)
2. Operation panel
The sewing pattern data format are supports DXF, AI, PLT, and DST. Sewing pattern data in these formats are widely used in many sewing plants. As a result, the operation panel is able to use the customers' existing sewing pattern data immediately. As many as 999 sewing patterns can be saved on the large-capacity memory of the operation panel. (Editing software is included with the accessory.)
3. Cloth trimmer specifications
4. Patterns are identified by means of RFID/Barcode reader to enable automatic reading of sewing data
*RFID (radio frequency identification): It is the technology to read and write data saved on IC chips through wireless non-contact transfer of radio frequency waves and is used to identify and manage products.
5. Oil stains are prevented
6. Height of the intermediate presser at its lower dead point can be adjusted on the operation panel
It is possible to change the intermediate presser height at its lower dead point steplessly during sewing. This feature is particularly effective when sewing multi-layered portions of material. Since the material is stably held by the intermediate presser, sewing troubles such as stitch skipping and thread breakage are prevented.
